Does My House Extension Require a Structural Engineer?
Yes — almost certainly. In around 99 per cent of house extension projects, a structural engineer is required. Nearly every extension involves new foundations, steelwork, structural openings, new floors, or a roof — all of which need to be properly designed and calculated by a structural engineer before Building Control will approve the work or a builder can safely construct it. Structural engineering for a standard single storey extension in Essex costs from £1,000 to £1,600 including VAT.
- Does Every House Extension Need a Structural Engineer?
- When Is a Structural Engineer Required for an Extension?
- What Structural Calculations Are Needed for an Extension?
- How Much Does a Structural Engineer Cost for a House Extension in Essex?
- Trees, Clay Soil, and Foundation Design in Essex
- Can I Use My Own Structural Engineer?
- Frequently Asked Questions
Does Every House Extension Need a Structural Engineer?
Usually, yes. In most cases, a house extension will require a structural engineer because nearly every extension involves some form of structural work. If the extension requires new foundations, a new roof, any steelwork, openings for windows and doors, or the removal of structural walls, then a structural engineer will normally be required. Those elements all need to be properly designed and calculated to make sure the extension is safe and that the loads are supported correctly.
That covers the vast majority of extensions — probably around 99 per cent of them. We have never come across a typical house extension that could proceed without some structural input.
The same applies to loft conversions. A loft conversion will usually involve work to the existing roof, new floor structures, staircases, and often steel beams. All of that needs to be assessed and calculated by a structural engineer.
Garage conversions can sometimes be an exception. If the work is relatively simple and does not involve removing structural walls, altering the roof, or making major structural changes, it may be possible to proceed without a structural engineer. However, that depends on the individual property and the exact work involved.
When Is a Structural Engineer Required for an Extension?
A structural engineer is required whenever the project involves structural work. That could include new foundations, a new roof, structural openings, any new superstructure, RSJs, piling, raft foundations, or underpinning. A structural engineer may also be required where there are existing concerns with the property — such as subsidence, movement, or cracking — or where a structural survey is needed before any work begins.
At Kirkwood, we have our own structural engineers who work as part of the same team as the architectural designers. That means the structural side is considered alongside the design from the beginning, rather than being treated as a separate part of the project later on. This avoids the gaps and delays that arise when architectural design and structural engineering are handled separately.
What Structural Calculations Are Needed for an Extension?
Both Building Control and the builder will use the structural information, so it is a critical part of the project. The structural engineer calculations for an extension typically cover:

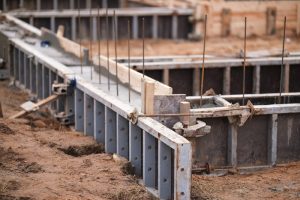

- Foundation type, size, depth, layout, and any reinforcement details
- Steel beam calculations — the correct section size to carry the loads from walls and floors above
- Floor joist sizes, spans, and load paths
- Roof structure specifications — timber sizes, rafter dimensions, ridge beam details
- Padstone details where beams bear onto walls or columns
- Piling design if ground conditions require it
All of this information allows the builder to construct the extension correctly and gives Building Control the details they need to confirm that the structural work complies with the approved design.
How Much Does a Structural Engineer Cost for a House Extension in Essex?
Structural engineering for a standard single storey rear extension in Essex costs from £1,000 to £1,600 including VAT in 2026. This covers foundation design, structural steelwork calculations, floor and roof structural specifications, and all associated Building Control drawings. More complex projects cost more:
- Straightforward strip foundation extension: from £600 for the foundation element
- Standard single storey rear extension (full structural package): £1,000 to £1,600
- Piled foundations required: from £1,000 for the structural engineering element
- Loft conversion: £1,000 to £1,200
- Double storey extension: £1,200 to £2,000
Because Kirkwood provides structural engineering in-house alongside the architectural and building regulations service, these stages are normally completed at the same time, reducing the overall timeline.
Trees, Clay Soil, and Foundation Design in Essex
One of the most important factors in foundation design across Essex is the presence of trees near the proposed extension. Any trees within 30 metres of the proposed foundations need to be identified, along with their species, height, and distance from the build.
Clay soil is prevalent across much of Essex — particularly in Wickford, Basildon, Benfleet, Billericay, and parts of Chelmsford. Clay shrinks in dry weather and expands in wet weather. Tree roots extend the drying zone of clay significantly, which can cause ground movement if foundations are not deep enough. Kirkwood’s structural engineers check tree proximity as a standard part of every foundation design. Where trees are present, the foundation depth is increased accordingly — or a piled foundation is specified where necessary.
Can I Use My Own Structural Engineer?
Yes — a homeowner can use any structural engineer they choose. However, using the same company for architectural design, structural engineering, and building regulations produces more consistent, better-coordinated documents and eliminates the risk of the two sets of drawings conflicting with each other. When Kirkwood takes responsibility for the full package, we can guarantee coordination between all three stages. When a third-party structural engineer is involved, we can still work alongside them — but we cannot take responsibility for their work.
One thing to be aware of when choosing a structural engineer independently: over-specified structural designs are quite common in the industry. We have seen cases where foundations have been designed significantly deeper than necessary, or steelwork specified far heavier than required. This has a direct impact on build costs — a heavier steel requires specialist lifting equipment and a more complicated installation. A sensible, project-specific structural design can save far more than the difference between two engineering quotes.
Book a Free Discovery Call
Frequently Asked Questions — Structural Engineer for House Extension
Do I need a structural engineer for a house extension?
Yes, in almost all cases. Around 99 per cent of house extensions require structural engineering input because they involve new foundations, steelwork, structural openings, or a new roof structure. Building Control will not approve the work without structural calculations and drawings.
How much does a structural engineer cost for an extension in Essex?
Structural engineering for a standard single storey rear extension in Essex costs from £1,000 to £1,600 including VAT in 2026. This covers the complete structural package — foundation design, beam calculations, floor and roof structural specifications, and Building Control drawings. More complex projects cost more.
What does a structural engineer calculate for a house extension?
A structural engineer calculates foundation type and depth, steel beam sizes for any wall removals or new openings, floor joist sizes and spans, roof structural specifications, and padstone details. For extensions near trees, the engineer also assesses tree proximity and its effect on foundation depth — particularly important on clay soils across Essex.
Do I need a structural engineer to remove a wall?
Yes. Removing a load-bearing wall requires structural calculations from a qualified structural engineer. The engineer calculates the correct steel beam size and padstone specification to safely carry the load from above. Getting this wrong can cause structural movement, cracking, and costly remedial work.
When does the structural engineering stage happen?
Structural engineering normally follows planning approval. Once the architectural design is agreed and approved by the council, the structural engineer works from the approved plans to produce the calculations and structural drawings required for Building Control. At Kirkwood, this stage is usually completed simultaneously with the building regulations drawings.
Can the same company provide architectural design and structural engineering?
Yes — and this is the most efficient approach. When the same team produces both, the architectural drawings and structural calculations are coordinated from the start. Kirkwood provides both services in-house, which means clients have one point of contact and one team accountable for the complete design package.
What structural engineering is needed for a loft conversion?
A loft conversion requires structural calculations for the new floor structure, the roof alterations (dormer walls, hip-to-gable changes, new ridge beam), and any steel required at the lower floor level if internal walls are affected. The typical cost for loft conversion structural engineering at Kirkwood is £1,000 to £1,200.
